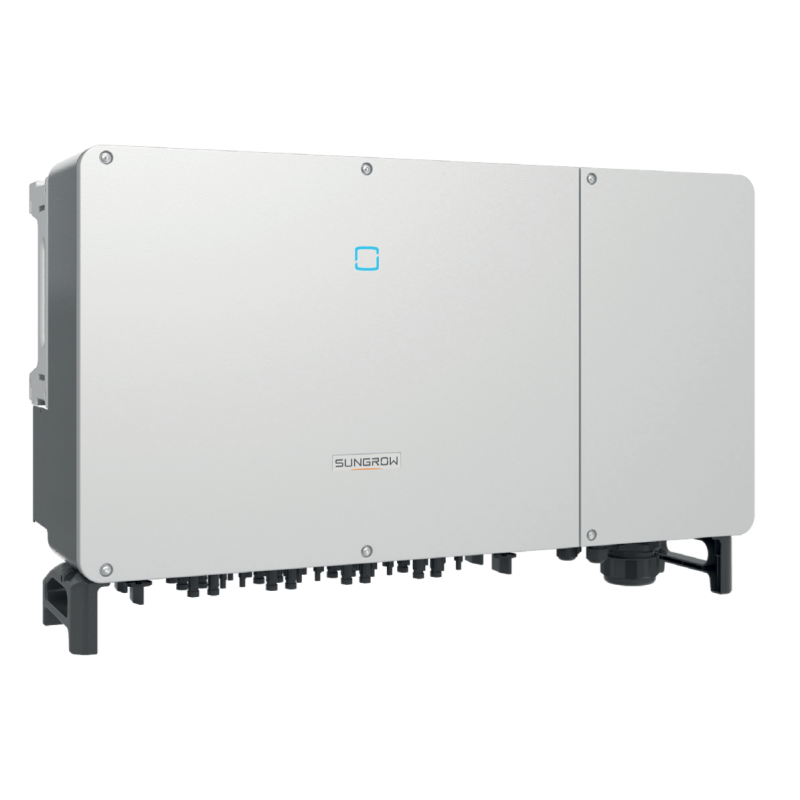

Solárny menič SUNGROW SG250HX

Sungrow SG250HX-V112 Multi-MPPT String Inverter for 1500 Vdc System

HIGH YIELD
12 MPPTs with max. efficiency 99%
Compatible with bifacial module
Built-in Anti-PID a PID obnovenie funkcie

SMART O&M
Touch free commissioning and remote firmvér upgrade
Online IV krivka skenovania a diagnostiky (compatible with Sungrow logger and iSolarCloud)
Fuse free design with smart string current monitoring

LOW COST
Compatible with Al and Cu AC cables
DC 2 in 1 connection enabled
Power line communication (PLC)
Q at night function

PROVEN SAFETY
ochrana IP66 a C5
Typ II SPD pre DC a AC both
Compliant with global safety and grid code

KEY FEATURES:

• Max. PV input voltage: 1500 V
• MPP voltage range: 500 V - 1500 V
• No. of independent MPP inputs: 12
• Max. number of input connector per MPPT: 2
• Max. PV vstup current: 30 A * 12
• AC output power: 250 kVA pri 30 °C / 225 kVA pri 40 °C / 200 KVA pri 50 °C
• Max. AC output current - 180,5 A
• Nominal AC voltage - 3/PE, 800 V
• AC voltage range - 680 - 880 V
• Overvoltage protection: DC Type II / AC Type II
• Degree of protection - IP 66
• Cooling metód: Smart forced air cooling
• Dimensions (W x H x D) – 1051 x 660 x 363 mm
• Weigh - 99 kg
• Display / Communication - LED, Bluetooth + APP / RS485 / PLC
• Manufacturer Warranty - 5 rokov. (Can be extended to 20 years)
